Spray Dryer Design Principles

Spray drying is a method for transforming liquid feed into dry powder by rapidly evaporating moisture through contact with hot air.

Despite its apparent simplicity, designing an efficient spray dryer requires careful consideration of numerous engineering, thermodynamic, and material factors.

This article explores the key principles behind spray dryer design, highlighting factors that ensure optimal performance, energy efficiency, and product quality.

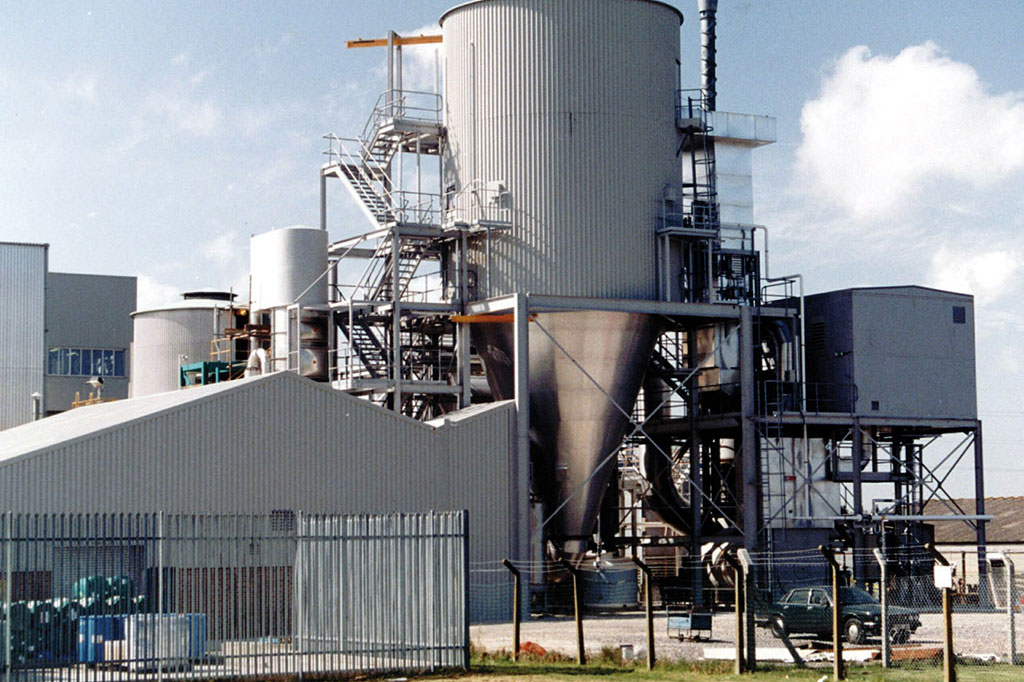

Understanding Spray Drying

Spray drying fundamentally consists of breaking a liquid feed into tiny droplets, subjecting them to hot air, and then collecting the resulting dried particles. The process is ideal for producing powders with controlled particle size, low moisture content, and uniform characteristics. Spray drying is commonly used for milk powder, coffee, powdered chemicals, pharmaceuticals, and heat-sensitive bioactive compounds.

The design of a spray drying machine directly impacts drying efficiency, powder quality, and operational costs. Poor design can result in high energy consumption, product degradation, clogging, or uneven particle size distribution. Therefore, engineers must carefully integrate principles from fluid dynamics, heat and mass transfer, and mechanical design.

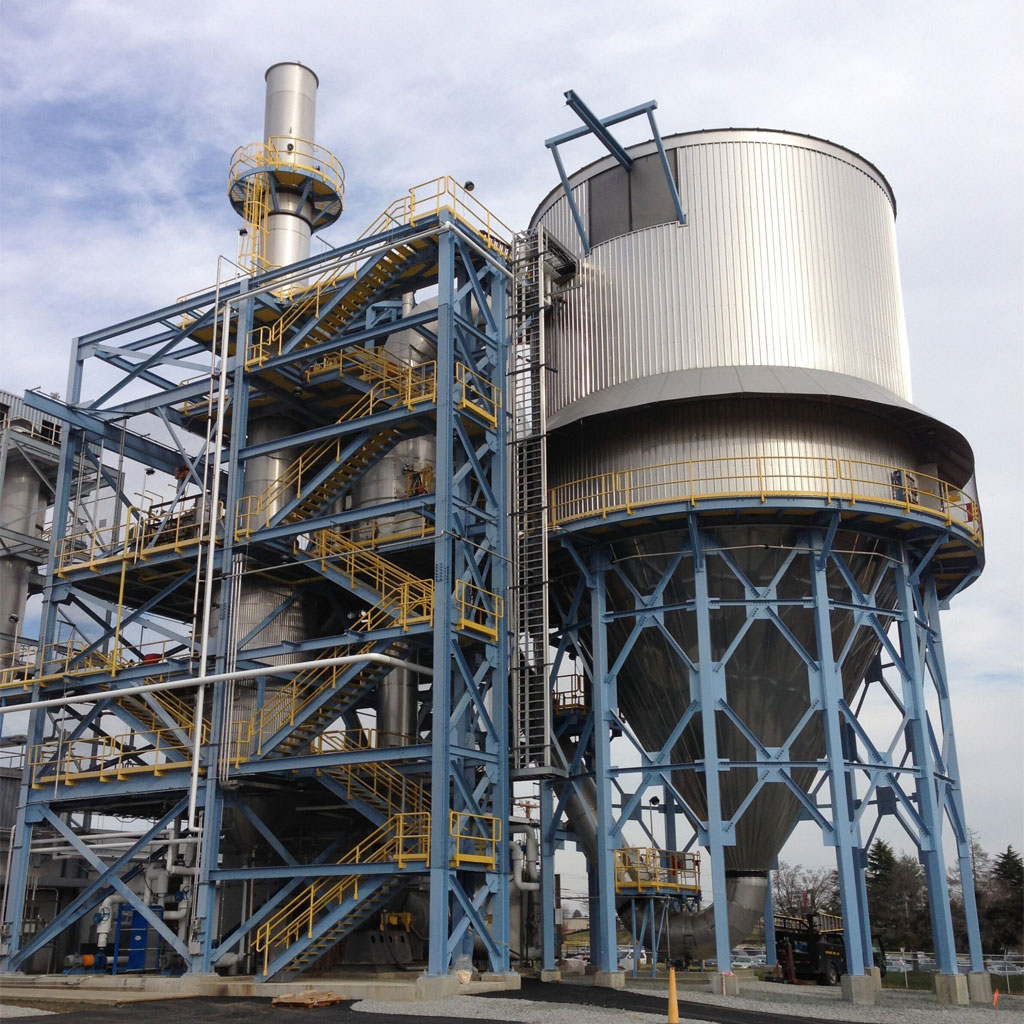

Key Design Considerations

1. Type of Spray Dryer

The first design decision involves selecting the type of spray dryer. The most common designs include:

• Centrifugal atomizer spray dryers: Liquid is fed into a high-speed rotating disc that produces fine droplets. This type is suitable for large-scale production and low- to medium-viscosity feeds.
• Pressure nozzle spray dryers: Liquid is forced through a nozzle under pressure to produce droplets. They provide uniform particle size and are ideal for high-viscosity liquids.
• Closed-loop spray dryers: Recycle air in a sealed system to reduce oxygen exposure, ideal for oxidation-sensitive products.

The choice depends on feed properties, desired particle characteristics, production scale, and energy considerations.

2. Atomization and Droplet Formation

Atomization is a critical stage, as droplet size determines drying rate, powder quality, and particle morphology. Smaller droplets dry faster due to higher surface area-to-volume ratios but can also produce fine dust that is difficult to collect. Larger droplets may not dry completely and can lead to sticky deposits on dryer walls.

Designers must balance droplet size, feed viscosity, and atomization energy. Factors influencing atomization include nozzle type, liquid feed pressure, rotary disc speed, and feed temperature.

3. Airflow and Temperature Control

Hot air is the drying medium, and its flow rate, temperature, and distribution are central to efficient drying. Key principles include:

• Inlet air temperature: Determines the maximum heat available for evaporation. It must be high enough to achieve rapid drying but low enough to prevent thermal degradation of the product.
• Outlet air temperature: Reflects residual moisture in the powder. Controlling outlet temperature prevents over-drying or burning.
• Air distribution: Uniform airflow ensures consistent drying and prevents wall deposition. This is achieved using proper air distributors, baffles, or swirl chambers.

Energy efficiency can be improved through preheating the air, recovering exhaust heat, or using multi-stage drying chambers.

4. Residence Time

Residence time is the duration droplets spend in the drying chamber. It must be sufficient for complete moisture removal but not so long as to overheat the product. Residence time is influenced by chamber size, air velocity, and droplet size. Designing a chamber with optimal height-to-diameter ratios and using countercurrent or co-current flow patterns can help achieve the desired residence time.

5. Powder Collection Systems

Efficient powder collection is essential to minimize product loss and maintain a clean working environment. Common collection systems in spray dryers include cyclones, bag filters, and electrostatic precipitators. The choice depends on particle size distribution and product sensitivity:

• Cyclone separators: Use centrifugal force to separate powder from air. They are suitable for larger particles but may not capture fine dust efficiently.
• Bag filters: Provide high collection efficiency for fine powders but require periodic cleaning.
• Electrostatic precipitators: Suitable for very fine powders and conductive materials.

Proper design prevents powder accumulation, which can lead to contamination, clogging, or fire hazards.

6. Material Considerations

Spray dryers must be constructed from materials resistant to corrosion, abrasion, and high temperatures. Common materials include stainless steel, nickel alloys, or coated surfaces. For food and pharmaceutical applications, compliance with hygienic standards (e.g., FDA, GMP) is mandatory. Additionally, surfaces may be polished or treated to reduce product adhesion and facilitate cleaning.

7. Control Systems and Automation

Modern spray dryers integrate advanced control systems for real-time monitoring and adjustments. Sensors track inlet/outlet temperature, humidity, airflow, and powder flow. Automated control ensures stable operation, consistent product quality, and safety. Examples include:

• PID controllers for temperature regulation.
• Flow meters and pressure sensors for feed and air.
• Level sensors for powder collection hoppers.

Automation reduces operator errors, minimizes downtime, and improves energy efficiency.

8. Energy Efficiency Considerations

Spray drying is energy-intensive, so design must focus on minimizing consumption. Strategies include:

• Using energy-efficient atomizers and fans.
• Recovering heat from exhaust air via heat exchangers.
• Pre-concentrating feed to reduce moisture content before drying.
• Optimizing airflow patterns to minimize stagnant zones.

Energy optimization not only reduces costs but also lowers the environmental footprint of operations.

9. Product-Specific Requirements

The spray dryer design must be tailored to the product’s physical and chemical properties:

• Heat sensitivity: Materials sensitive to high heat may necessitate low-temperature or vacuum spray drying to prevent degradation.
• Hygroscopicity: Sticky powders may need wall-heating, anti-caking agents, or specialized coatings to prevent buildup.
• Particle morphology: Control over shape, size, and density may require fine-tuning of atomization and drying parameters.

Understanding these requirements ensures that the spray dryer produces a consistent, high-quality product.
