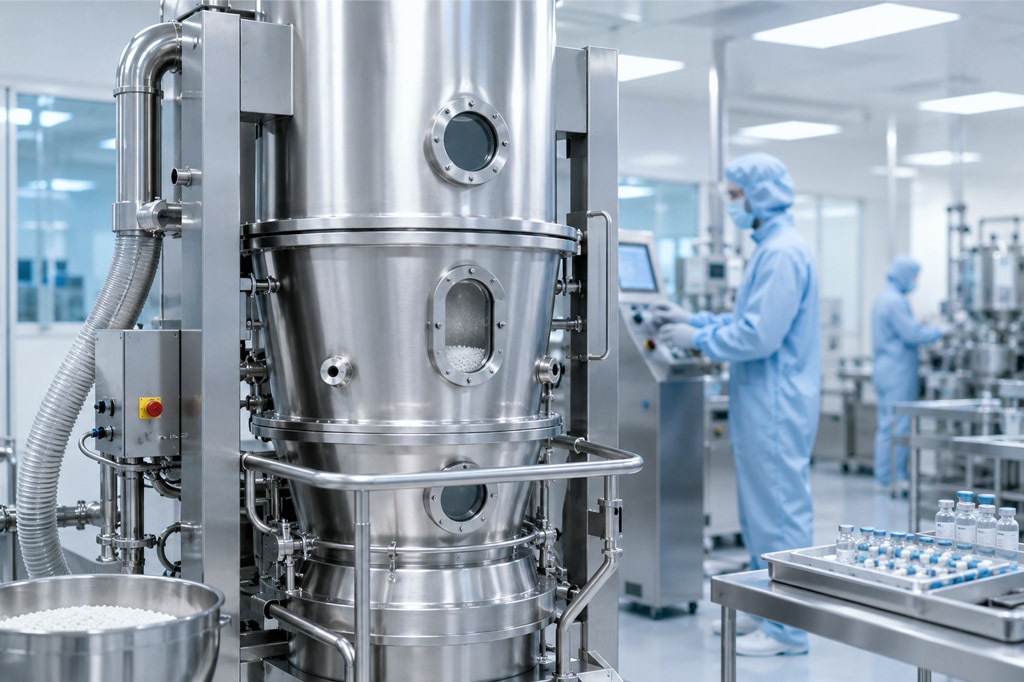

Fluid Bed Dryer in Pharmaceutical Industry

Q: Which pharmaceutical materials can be evaluated for fluid bed drying?

Suitable granules, powders, crystals and other fluidizable solids can be evaluated. Particle-size distribution, bulk density, cohesiveness, attrition, electrostatic behavior, moisture profile and formulation determine whether stable fluidization is practical.

Q: Does a pharmaceutical fluid bed dryer automatically comply with GMP, ATEX or 21 CFR Part 11?

No. Compliance and suitability depend on the selected configuration, software and records scope, facility, utilities, procedures, hazard classification, documentation, qualification and validation. Each requirement must be specified and contractually confirmed for the project.

Q: Are the published yield, moisture and capacity values guaranteed?

No. Published technical values are reference ranges. Achievable yield, final moisture, batch time and capacity depend on the actual formulation, loading, fluidization, filtration losses, utilities, endpoint method and agreed acceptance test.

Q: What information is needed for a pharmaceutical fluid bed review?

Provide formulation and particle data, batch load, initial and target moisture, temperature limits, fluidization or trial data, potency and dust hazards, containment, cleaning, room classification, controls, documentation, qualification scope, utilities and installation country.

Our fluidized bed dryers deliver gentle, uniform and controllable drying for a wide range of pharmaceutical products - ensuring product quality, regulatory compliance and process efficiency.

Fluid Bed Dryer in Pharmaceutical Industry

Applications in Pharmaceuticals

Ideal for a wide range of products and processes.

Granules

Powders

Intermediates

Crystals

Filter Cakes

Extracts

Why Choose Our Fluidized Bed Dryer?

Optimal Quality
Gentle drying preserves particle structure, potency and flowability.

Energy Efficient
High heat transfer efficiency reduces drying time and operating costs.

Safe & Reliable
ATEX compliant options, explosion venting and safety interlocks.

Easy to Clean
Hygienic design with smooth surfaces, CIP/WIP options and quick access.

Advanced Controls
PLC/SCADA with real-time monitoring, recipe management and electronic records.

Global Support
Worldwide service network and long-term support for peace of mind.

Typical Technical Specifications

Parameter	Specification / Value
Dryer Equipment Type	Batch boiling fluidized bed drying system
Container Volume Range	100 – 1500 L (custom sizes available)
Productive Capacity	30 – 500 kg/batch
Steam Pressure	0.4 – 0.6 MPa
Steam Consumption	70 – 465 kg/h
Compressed Air Pressure	0.6 MPa
Compressed Air Consumption	0.3 – 1.1 m³/min
Fan Power	5.5 – 45 kW
Inlet Air Temperature	Ambient temperature to 120°C, automatic adjustment
Material Yield	>99%
Final Moisture Content	Down to 0.2%
Noise Level	<75 dB
Heating System	Steam heater with pneumatic ratio adjustment
Filtration System	Primary filter + F7 medium filter + H13 HEPA filter

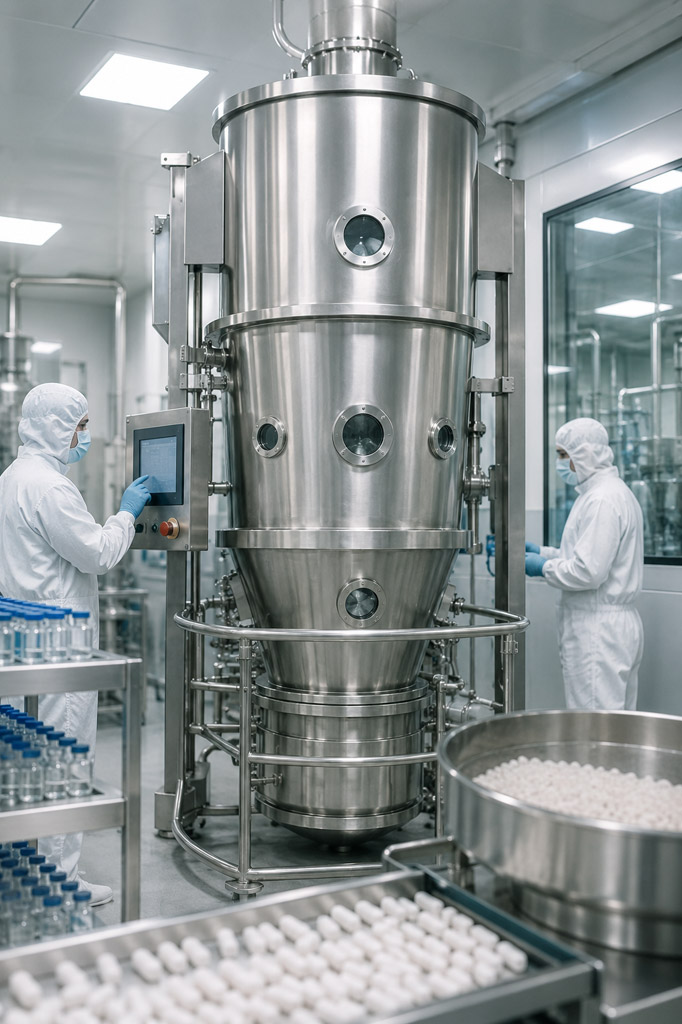

Pharmaceutical Purpose-Built Fluidized Bed Dryers

Pharmaceutical products demand more than just drying - they demand control, consistency and compliance.

Unique Pharmaceutical Drying Requirements	How Our Fluidized Bed Dryer Delivers	Limitations of Conventional Drying Solutions
Product Integrity & Thermal Sensitivity	Gentle fluidization with precise temperature control minimizes degradation of heat-sensitive APIs and maintains product efficacy.	High thermal stress can degrade actives and change product characteristics.
Uniform Drying & Low Residual Moisture	Excellent heat & mass transfer ensures uniform drying and consistent moisture content down to target levels.	Uneven drying, dead zones and higher residual moisture risk.
Cross-Contamination Prevention	Closed-loop design with high-efficiency filtration (HEPA) and material containment options to ensure product purity.	Open or partially closed systems increase contamination risk.
Regulatory Compliance & Traceability	Designed for cGMP compliance with complete documentation, data integrity (21 CFR Part 11 support) and validation-ready features.	Limited documentation, poor data traceability and validation challenges.
Scalability & Batch Consistency	From R&D to commercial scale—our dryers offer reproducible results with flexible configuration options.	Scale-up challenges lead to inconsistent quality and longer time to market.

Contact Us

Request a Drying Solution

Send your material, target capacity, initial and final moisture, available heat source, installation country and project timeline. An engineer can then review the process requirements and identify the next information needed for equipment selection.

Project information is used to evaluate your enquiry. See our privacy policy.

Evaluate the Material Before Fluid Bed Dryer Selection

1. Confirm Fluidizability

Review particle-size distribution, bulk density, cohesiveness, fines, attrition and electrostatic behavior using representative material.

2. Define the Drying Endpoint

Establish initial and target moisture, allowable product temperature, batch load, sampling and the proposed endpoint method.

3. Assess Containment and Cleaning

Define potency, exposure, dust or solvent hazards, filter arrangement, product-contact materials, cleaning method and changeover requirements.

4. Confirm Quality and Documentation Scope

Specify controls, recipes, alarms, data records, certificates, FAT/SAT, qualification support and site acceptance criteria.

Pharmaceutical Fluid Bed Project Requirements

Product and Formulation

Composition, feed form, particle size, bulk density, moisture profile, heat sensitivity, attrition limit and sample availability.

Batch and Process

Wet and dry batch mass, target cycle time, inlet-air condition, product-temperature limit, endpoint, discharge and upstream/downstream interfaces.

Facility and Safety

Room classification, containment, dust explosibility, solvent presence, oxygen or inerting requirements, exhaust, utilities and installation constraints.

Cleaning and Lifecycle

Contact finish, filter access, WIP/CIP expectations, drainage, inspection, maintenance, spare parts, documentation and qualification responsibilities.

Request a Pharmaceutical Fluid Bed Review

Send formulation, batch, moisture, fluidization, containment, cleaning, controls and qualification requirements.

Send Fluid Bed Project Data

Pharmaceutical Fluid Bed Drying FAQs

Which pharmaceutical materials can be evaluated for fluid bed drying?

Suitable granules, powders, crystals and other fluidizable solids can be evaluated. Particle-size distribution, bulk density, cohesiveness, attrition, electrostatic behavior, moisture profile and formulation determine whether stable fluidization is practical.

Does a pharmaceutical fluid bed dryer automatically comply with GMP, ATEX or 21 CFR Part 11?

No. Compliance and suitability depend on the selected configuration, software and records scope, facility, utilities, procedures, hazard classification, documentation, qualification and validation. Each requirement must be specified and contractually confirmed for the project.

Are the published yield, moisture and capacity values guaranteed?

No. Published technical values are reference ranges. Achievable yield, final moisture, batch time and capacity depend on the actual formulation, loading, fluidization, filtration losses, utilities, endpoint method and agreed acceptance test.

What information is needed for a pharmaceutical fluid bed review?

Provide formulation and particle data, batch load, initial and target moisture, temperature limits, fluidization or trial data, potency and dust hazards, containment, cleaning, room classification, controls, documentation, qualification scope, utilities and installation country.
