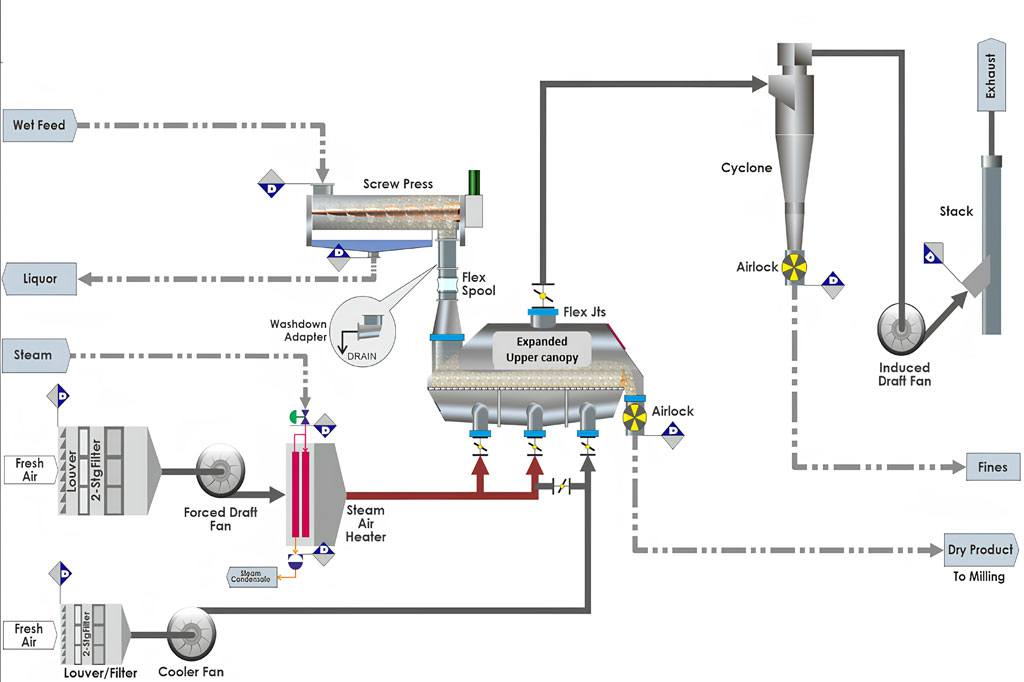

The working principle of a fluid bed dryer is based on the concept of fluidization, a process in which solid particles behave like a fluid when subjected to an upward flow of gas or air.
1. Airflow Generation and Distribution
The process begins with the generation of heated air using a blower and heating system. Air enters from beneath the drying chamber and is evenly dispersed through a perforated distributor plate.
This plate ensures uniform air distribution across the entire bed of material, preventing channeling or uneven drying.
2. Fluidization of Particles
With increasing air velocity, a point is reached where the drag force balances gravity—referred to as the minimum fluidization velocity—allowing particles to become suspended and behave like a fluid.
In this condition:
- Particles move freely and mix continuously
- Voids are created between particles, allowing air to pass through
- The bed expands and behaves like a boiling liquid
This fluidized state is essential for maximizing the contact between hot air and material surfaces.
3. Heat Transfer Mechanism
Heat transfer in a fluid bed dryer occurs primarily through convection. The hot air transfers thermal energy directly to the surface of each particle. Due to the constant movement and mixing of particles, heat distribution is highly uniform throughout the bed.
The high surface area exposure ensures that:
- Each particle receives consistent heat
- Temperature gradients within the bed are minimized
- Drying efficiency is significantly enhanced
4. Moisture Evaporation Process
As heat is transferred to the particles, moisture within the material begins to evaporate. The evaporation occurs in two main stages:
- Surface evaporation: Moisture on the outer surface vaporizes quickly due to direct contact with hot air
- Internal diffusion: Moisture from the interior migrates to the surface and continues to evaporate
The continuous airflow carries away the moisture-laden air, maintaining a low humidity environment that supports further drying.
5. Mass Transfer and Moisture Removal
The removal of moisture is governed by mass transfer principles. Moisture removal is driven by the vapor pressure difference between the wet material and the surrounding air, allowing water to migrate into the airflow.
Efficient mass transfer is achieved due to:
- High turbulence within the fluidized bed
- Constant renewal of air around each particle
- Large interfacial area between solid and gas phases
The exhaust system removes humid air and replaces it with fresh heated air, sustaining the drying process.
6. Particle Movement and Mixing
The fluidized condition ensures continuous and random movement of particles. This dynamic motion eliminates dead zones and prevents localized overheating or over-drying.
The mixing effect results in:
- Uniform moisture content across all particles
- Consistent product quality
- Reduced drying time
7. Temperature and Drying Control
The working principle also involves precise control of operating parameters, including:
- Inlet air temperature
- Airflow velocity
- Residence time of particles
By adjusting these variables, the drying rate can be controlled to suit different materials and moisture levels.
8. Exhaust and Fine Particle Separation
As the air exits the drying chamber, it carries fine particles along with moisture vapor. These particles are typically captured using filters, cyclones, or bag collectors to prevent material loss and maintain system efficiency.
9. End Point of Drying
The drying operation continues until the material reaches the specified moisture level. At this point:
- Heat transfer decreases as less moisture remains
- Particle temperature begins to approach the inlet air temperature
- The system reaches equilibrium
The dried product is then discharged from the system.
